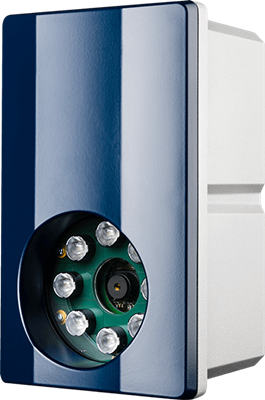

Advanced all-in-one license plate camera, embedded software, analyzer, and IR illuminator for vehicle access control.FEATURESLicense plate recognitionRead range of action = 6.5 ft to 33 ft (2-10m)No additional software requiredBarrier-controlled, free-flow applicationsAdvanced cameraHigh accuracyREST API for seamless third party integrationGlobal libraries availableTO GET STARTED  PRODUCT OVERVIEW8.7" Length x 5.2" Width x 5" Height5.5 lbsDie-cast housingHIBS CoverManufactured by NEDAPCOMMUNICATION INTERFACES1 line half-duplex selectable baud rate, cable distance 3937 ft10/100 Mbps, TCP, UDP, FTP, HTTP, DHCPWiegand 26 BIT sha1, Wiegand 64, Custom Wiegand formatREAD RANGE OBJECT SPEEDRead Range Distance: 6.5 to 33 feet (2 to 10 meters)Read Range Width: Up to 11.5 feet (3.5 meters)Freerun Object Speed: Up to 130 km/hTriggered Object Speed: Up to 250 km/hCAMERAOptics: 1/2 inch (12 mm)Image sensing resolution: 1/1.8" CMOS sensor, 1280 x 1024 pixels, SXGACamera illuminator: IR850 nmINPUT/OUTPUT/STORAGE2 digital inputs (opto-isolated)Output: Read results from number plates and/or images taken by the camera2 relay outputsStorage: 10 GBCABLENetwork (CAT5E) Power IO: (LiCY) 8 x 2 x 0.14 mm2Network Power IO Length: 16.4 feetDATA MESSAGE CUSTOMIZATIONRESTful interface (API) and String syntax fully configurable for integration with access control systems and third-party softwareACCESSORIESPole/wall mounting kit includedACCESS CONTROL APPLICATIONSVehicle access controlAutomatic toll collectionFree flow applications at parking facilitiesOther situations not desirable to issue RFID tags
